Digital Scholar Lab - Analysis

Return to the main Gale Digital Scholar Lab tutorial

This tutorial demonstrates how to use the Digital Scholar Lab's six analysis tools.

Table of Contents

Introduction

(back to table of contents)

  1. Now that we have our text collection and our cleaning configuration, let’s try some tools. To get started, click on the Analyze button in the toolbar.
    Analyze button from the top toolbar


  2. Under the Content Set dropdown menu, click on Select Content Set.
    Select Content Set dropdown menu

    Select Stein.
    Selecting the Stein content set

    Now, click Add Tool (at the top-right corner).
    Click on Add Tool on top toolbar

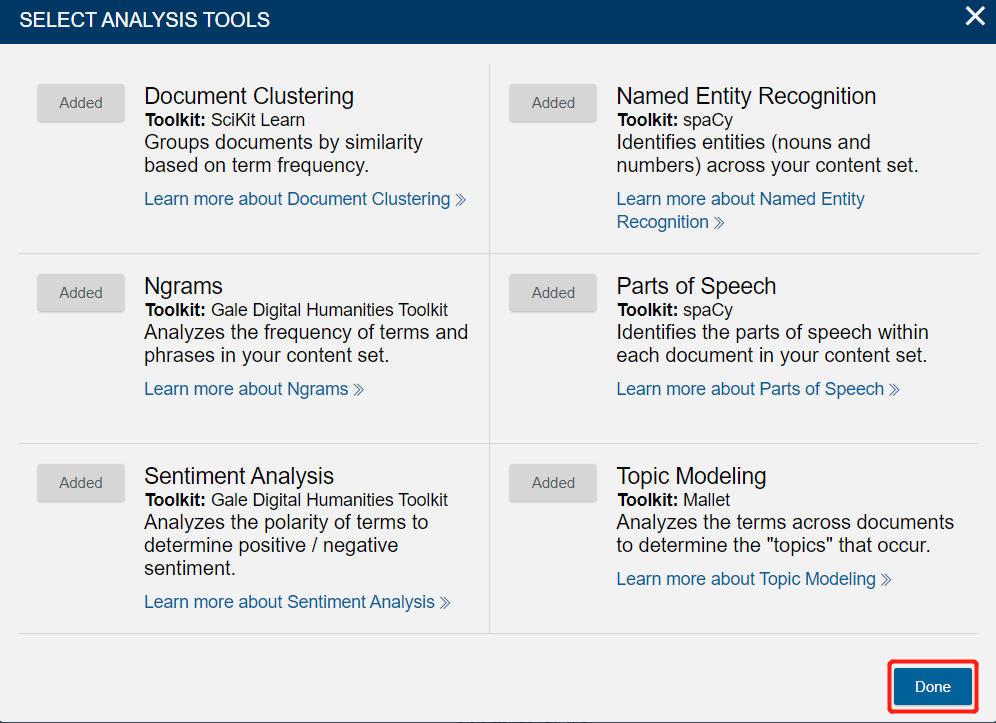

  3. Here you can pick from Gale’s six tools. For this particular project, add all six tools: Document Clustering, Named Entity Recognition, Ngram, Parts of Speech, Sentiment Analysis, and Topic Modeling. This selection includes a mix of qualitative and quantitative tools.
    Clicking on Add Tool for each tool

  4. Finally, click done.
    Done button in tool selector popup

  5. The Analyze page now lists your chosen tools.
    Note: once you run the various tools, you can return to this page to view your analyses and visualizations.
    Interface of all tools being added


Document Clustering

(back to table of contents)

  1. On the Analyze page, under the Document Clustering tool, click Edit.
    Document clustering tool, clicking on Edit

    Note: while there is an option to run multiple (or all) tools simultaneously, without prior setup, this option would use the default cleaning configuration. Since we made a custom cleaning configuration, and so that you can see some of the options for each tool, we’ll run each tool individually.

  2. Just like with the cleaning configurations, you can customise your settings for each tool. Name the tool setup Stein Cluster, set the Cleaning Configuration to Stein, and set the number of clusters to 3.
    Tool setup for Document Cluster

  3. Finally, click run.
    Click on the Run button


  4. The tool will then begin processing.
    Waiting for the tool to proceed

  5. This analysis job is processed on Gale’s servers. Let’s wait a minute.
    Note: every tool has an About icon, which gives you a popup with some basic information and a link to fuller documentation. All of the tools in the Digital Scholar Lab are free tools you can download and run on your computer (sometimes they run on their own, other tools like Document Clustering rely on a programming language like Python).
    Click on the Help button for information about how this tool works.
    Learn more about the tool

    Note: the Document Clustering tool uses the Python programming language to run a Python library called SciKit-learn. It uses machine learning, specifically the k-means clustering algorithm, to group the documents based on their similarity in terms of vocabulary.
    Go back to the Stein Cluster page. Then, Refresh the page (CTRL+R or F5 in Windows, Command+R on Macs.)

  6. Once the Run Status says Completed, it should create a graph similar to this one:
    Scatter plot with dots clustered in three groups forming a rough triangle

    There are hundreds of dots on a scatter plot, in a roughly triangular arrangement, clustered into three colours: black, orange, and green. Each dot is an individual text, and the more similar two texts are (in terms of their vocabulary), the closer their corresponding dots are. Each cluster is colour-coded and uses a different symbol for each point.
    Note: Although there are scales on the X and Y axes, they have no meaningful numeric significance. Instead, they provide a reference for measuring distance or closeness between individual points. For more information on the mathematics of how this algorithm works, see this video on the k-means algorithm.
    Mouse over one of the dotsa popup appears with the title of text you chose. Clicking will bring you to the Doc Explorer view of that text, but don't do that, as we want to look at the corpus as a whole.
    A single dot in the scatter plot, mouseover text says "Cluster 3, Personalities of the Week: People in the Public Eye"
    Now, a word of caution: what looks similar to the algorithm might not be meaningful to humans. In our case, however, there are some meaningful differences that look to me a little bit like different genres. Mouse over several of the dots and see if a pattern emerges. It looks roughly like Cluster 1 consists of short notices and bulletins, including biographical details (Stein’s publications and obituary). Cluster 2 contains brief reports of his expeditions and discoveries. Cluster 3 seems to be reviews of his published books. Note also that a number of book advertisements with similar names (MacMillan and Co) are clustered together, showing that the clustering tool recognises that they are similar in terms of their vocabulary.

  7. For this scatter plot, you can download both the graph itself and the data used to generate it. On the toolbar, click Download.
    Click on the Download button


  8. On the Download Options window that appears, under Visualization download formats, select PNG and then click Download.
    Download options with PNG checked





Named Entity Recognition

(back to table of contents)

  1. Let’s try our second tool. Click on Analyze.
    Analyze button on top toolbar
    Then under Named Entity Recognition, click Edit.
    Click to edit setup for the tool


  2. The Named Entity Recognition tool will extract common and proper nouns from our texts, and then attempt to classify them as people, titles, places, political entities, and so on. Name our tool Stein NER, set the Cleaning Configuration to Stein, and click Run.
    Tool setup with name and cleaning configuration


  3. While you wait, feel free to click on the Help button for information about how this tool works.
    Note: Named Entity Recognition uses a tool called spaCy, which runs in the Python programming language. It breaks up sentences into their component words, and then classifies the nouns. By default, it uses an existing vocabulary, and then tries to predict from context what classes new nouns fall into. It then tags and colour-codes these categories, and tells us where these terms can be found in our corpus.
    Click refresh and then you will see the results.

  4. The Named Entity Recognition tool displays the set of nouns with the highest count across your corpus. The algorithm has classified, or in some cases guessed, into which category each word falls. Looking over the first few entries, it looks fairly good: it has correctly identified that "Chinese", "British", "Indian", and "Soviet" refer to cultural groups, that Aurel Stein is a person, and that "today" is a date. There are some issues, likely due to the unfamiliar terms: “Kashgar” is actually a city, not a person, but most entries are correct. I doubt that Kashgar, a Central Asian city, appears in the tool's default dictionaries, so in this case the tool guessed that Kashgar was a person based on its usage in various sentences.
    Results: categories like place and person on left, with entities (e.g. China) and their categories on the right
    You can click on any entity for more information about where it appears in our corpus, and what other categories it also falls into. Let's try this.
    Click on the first entry, Chinese.
    Click on the Chinese entity

    Let's examine the results for this particular named entity.
    Details: Chinese is categorized as a Cultural Group with 120 Documents, listed on right
    At the top, "Chinese" is identified primarily as a Cultural Group, which means that in your corpus, "Chinese" most frequently refers to groups of Chinese people or officials. Because Stein was primarily travelling through western China, often dealing with Chinese officials and manuscripts in Chinese, it makes sense for it to be the most common entity and also for these three meanings to dominate.
    In the second section of the popup window, there is a list of all documents in the corpus in which the term "Chinese" appears.
    Click on "A Chinese Expedition Across the Pamirs and Hindukush A.D. 747."
    Select one document

    Click on the Open Document Button. Gale DSL will then present you with a view of the document, marked up with tags showing how it has identified each entity within the document.
    Chinese entity information with related entities below
    Text of the document with entities tagged with their categories

    Note that this version of the text has been filtered through the cleaning configuration, so punctuation and common words (e.g. "the") are missing.
    Now that you have seen how Named Entity Recognition works on a particular document, close this window by clicking on the X.

  5. You will now return to the popup for the term Chinese. Another feature available in the Digital Scholar Lab is to use the Named Entity Recognition tool to identify documents related to a single topic, and then create a new collection with some or all of the documents with that term. Let's say that you are interested specifically in Stein's relationships with the Chinese and want to create a sub-collection focusing on Chinese art and archaeology. Check the boxes next to "A Chinese Expedition Across the Pamirs and Hindukush A.D. 747," "Exploration in Central Asia," "Buddhist Paintings at the Festival of Empire," and "The Treasures of Asia." Then click on Add Selected.
    Selected desired documents
    Click on Add to Content Set

    You can either add these documents to an existing content set or create a new one. Select "New Content Set";
    Add to new content set
    name it "Chinese art and archaeology".
    Name the content set Chinese art and archaeology


  6. Now, close the notification by clicking the Close button.
    Confirmation window

    Note: you can check to see the new collection by clicking on My Content Sets. Named Entity Recognition provides an additional way of creating content sets outside of searches. Be sure to return to the Named Entity Recognition tool to continue with the next step.

  7. There are many categories that aren’t helpful right now, so let’s filter so that we just have categories we’re interested in. First, uncheck Category.
    Uncheck the Category option
    Then, check Geo-Political Entity, Person, and Cultural Group.
    Check Geo-Political Entity, Person, and Cultural Group

    You will now have a list consisting of just those three categories.
    List of selected eneity categories
    Now we can begin to answer questions like, “Which cultural groups are mentioned most often in association with Aurel Stein?” or “Who associated with him? Who does he write about?” As with the Clustering tool, you can download the complete data for further analysis by clicking on the Download button.
    Click on the Download button

    Although there are no data visualizations, like graphs, you can download the data as either CSV (a spreadsheet) or JSON. Click on CSV and then Download.
    CSV option is checked
    Note: this dataset might need some cleaning, as you saw with the city of Kashgar being incorrectly interpreted as a person.

Ngrams

(back to table of contents)

  1. One popular tool is Ngrams (you might know of it through Google Ngram Viewer), which counts the frequency of specific words in a corpus. Click on Analyze and then click Edit under the Ngrams tool.
    Click on Edit to setup the Grams tool


  2. You’ll see that the Ngrams tool has a few settings. Let’s change the Name to Stein Ngram and the cleaning configuration to Stein; leave the Ngram sizes at their defaults (min 1, max 6); set Ngrams Occurence Threshold to 5; and return 75 ngrams. Finally, click run.
    Setting up the Ngrams tool


  3. The Ngram tool counts the number of times a term or a phrase occurs in our corpus and then graphs it. The Ngram size option refers to the length of the term: 1 means a single word, whereas 3 means that it looks for three-word phrases. By default, the tool looks for single words or phrases up to four words long. Ngrams Occurrence Threshold is the minimum number of times a word or phrase must occur in the corpus to be part of the Ngram. By setting it to 5, we cut out words or phrases that occur just two or three times in our thousands of documents. Number of Ngrams Returned determines the number of terms that appear in our visualizations. The default is 1000 but we've reduced that to 75 for visualization purposes. Although you might want to know the top 1000 terms for your research, it can look a bit cluttered in a wordcloud. One key point is that this tool ignores any terms that are composed entirely of words from our stop word list. Once a minute has passed, refresh the page.


  4. Now the word cloud and bar chart are both available. Click on the word cloud.
    Word cloud icon highlighted on top toolbar

    This image visualizes the most common words in the corpus, while accounting for our specific cleaning configurations and tool settings.Word cloud with prominent terms Chinese, Kashgar, British, Russian, Stein
    If you mouse over a term, you can see how many times it appeared.
    Interpretation: the more frequently an ngram appears in the corpus, the larger it appears in this word cloud. As we saw with the Named Entity Recognition tool, Chinese (referring to Chinese culture, Chinese people, and the Chinese language) are major topics in writing by or about Stein. In addition, British, Majestys (i.e. "In His Majesty's Service"), Subject(s), and other terms referring to British imperialism from 1900-1940 appear. There are several terms related to specific places (e.g. Kashgar) and official positions (e.g. Taoyin, Amban) in China or the Chinese government. Since Stein recorded his travels, many words related to geography (route, river, stream, valley, pass, road, ground, bank, etc.) occur. "Russian" and "Soviet" are also major terms because the British Empire was competing at this time with Russia (both imperial and then later Soviet) for control over the territories between British India and Russian Central Asia. (For more information, look up The Great Game (in English) or the Tournament of Shadows (in Russian).)


  5. Word clouds are popular and it’s useful to be able to generate them. Click on Download.
    Download button
    Here you can download either the Word Cloud image or the underlying data from the Ngram tool (which lists the most frequent words and phrases in the corpus). Let's download the image as a PNG. Click on Term Frequency PNG and then Download.
    Download popup with PNG highlighted
    Note: unfortunately, there is no way to control the position or colour of specific words - they appear to be randomly generated. By resizing your browser window, you resize (and thus randomly reposition) some of the words in the world cloud.


  6. Let’s switch to the bar chart. On the top menu, click on Bar Chart.
    Bar Chart icon from top toolbar

    This provides another way of looking at word frequency. Here, we can see at a glance which words were most popular.
    Horizontal bar chart, top terms Chinese, Kashgar, British, Stein, road, river, Russian

    "Chinese" is the most popular word by far, which makes sense considering that Stein was travelling extensively through China and interacting with Chinese officials. Kashgar, a city in western China where both the British and Russian consulates were located, is the second-most common term. Stein actually comes fourth, which is surprising considering these texts are specifically about or by him. "Road" and "river" come fifth and sixth, likely because Stein was writing about the geography of these locales. Ngrams are one of the simpler text analysis tools but they can reveal a great deal about our text collection.

Parts of Speech Tagger

(back to table of contents)

  1. The Parts of Speech Tagger compares the writing styles of different authors by counting their use of different parts of sentences, such as proper nouns and adjectives. Begin by clicking on Analyze in the top menu. If necessary, select Stein from the dropdown menu.
    Click on Analyze button in the top toolbar
  2. Under the Parts of Speech Tagger tool, click Edit.
    Edit the tool setup
  3. The cleaning configuration we have created removes many parts of speech that this tool counts. In order to show how cleaning configurations affect this tool, and to better understand the various authors' styles, we'll run this tool twice, once without a cleaning configuration, and once with. Begin by naming this tool setup "Stein no cleaning". Change the cleaning configuration to None. Then finally, click Run.
    Tool setup with just name and cleaning configuration
  4. Wait for a minute, then refresh. With the tool complete, DSL will produce a graph comparing the content sets. Each tick on the X-axis represents a different part of speech - pronouns, proper nouns, adjectives, etc. - and the Y-axis represents their frequency.
    Bar chart with bars for each part of speech. Nouns and punctuation are highest.
  5. This is a useful start, but it is too cluttered. We want to look into the styles of different authors. On the left sidebar, click on the dropdown menu and select Author.
    Group data by authors
  6. To show the styles of authors that we are interested in, click on Change selection to change the filter for authors.
    Filter authors
    First, uncheck all the boxes (the first ten boxes)
    The first ten authors alphabetically have been checked by default
    Now the filter would look like this
    Uncheck all authors
  7. In the top-right Author Filter box, type "stein" (without quotation marks). Select "Sir Aurel Stein.", which should be the third option. Leave off the others.
    Filtered results, with Sir Aurel Stein selected
    Note: Stein's name appears several times here because his name has been entered with variations in the documents in DSL. This tool treats each variation of his name as a different author. The variation we chose above is associated with the most texts.
  8. After adding Sir Aurel Stein, type "Giles" in the Author Filter. Add "Dr Lionel Giles". The author will be added to the accompanying graph.
    Check Dr Lionel Giles
    Note: Lionel Giles was a contemporary of Stein's, and was a scholar who worked at the British Library. His name appears twice because in one text, "Lionel Giles" and "Lionel Giles;" The one without semicolon) is added as author.
  9. Type "Mirsky" in the Author Filter and add Jeannette Mirsky.
    Choose Jeannette Mirsky
    Note: Jeanneatte Mirsky wrote a biography of Stein in 1977. Although she's writing about similar content as him, she wrote much closer to the present day, so any differences revealed by the Parts of Speech Tagger are likely due to their different styles rather than content.
  10. Type "Lattimore" in the Author Filter, and add Owen Lattimore.
    Choose Owen Lattimore
    Note: Owen Lattimore was a scholar of Asia, but his writing style differs markedly from Stein's.
    Both Aurel Stein and Owen Lattimore are symbolized by the same symbol (a downward-pointing triangle) and the same shade of blue. Unfortunately, there is no way to adjust symbolization in the DSL, so this is an issue you should watch for.
  11. Finally, click Done to see the complete legend. Four bar charts that describe the writing style for each author are shown. The final version of this graph reveals some major differences in writing styles: Lattimore uses a much higher proportion of proper nouns than anyone else and Mirsky uses the highest proportion of adjectives.
    One bar chart per author, comparing their use of parts of speech
  12. Now, let's try rebuilding this chart, but with our existing cleaning configuration. In the left sidebar, click on Tool Setup.
    Click on Tool Setup
    Below the existing tool setup, click on New tool setup.
    Add new tool setup
  13. Name this setup "Stein with stopwords". Change the cleaning configuration to Stein. Finally, click Run.
    New tool setup for Parts of Speech
  14. Wait a minute, then refresh the page. Just as before, use the Author Filter to add Aurel Stein, Lionel Giles, Jeannette Mirsky, and Owen Lattimore. Deselect all other authors. Now there are practically no conjunctions, particles, adpositions, or pronouns. As a result, some of the other parts of speech take on proportionally more weight. It is up to you as a researcher to determine which cleaning configuration - or none at all - works best for your aims. When in doubt, using no cleaning configuration is best for the Parts of Speech Tagger tool.
    Four bar charts, one for each author, but pronouns, articles, etc. are missing for all

That's it! You have learned how to use the Parts of Speech Tagger to begin comparing the styles of different authors, and you have learned what kind of impact the cleaning configuration has on your data.

Sentiment Analysis

(back to table of contents)

  1. Sentiment Analysis is a powerful tool for estimating the overall positive or negative emotional feelings of thousands of texts very quickly.
    On the Analyze page, under Sentiment Analysis, click the edit button to edit tool setup.
    Edit the setup for the sentiment analysis tool

  2. In the Tool Setup for Sentiment Analysis, call the tool setting "Stein Sentiment", change the cleaning configuration to Stein, and finally, click Run.
    Tool setup

  3. As always, you can click on the About button to get more information.

    Note: Sentiment Analysis works by analyzing the words in a sentence, and looking them up in a dictionary that has a positive or negative score for many words. For example, the word "good" has a score of (positive) 3, and the word "unhappy" has a score of -2. The tool sums all scored words in a document and DSL then groups documents by year and averages their scores to produce yearly scores. You can download the full word list and their associated scores from AFINN.

    Warning: the sentiment analysis tool does not understand context or meaning. It cannot distinguish sarcastic statements from sincere ones and it will not recognize words not on its list. Furthermore, without additional coding, it does not recognize negations, e.g. that "not impressed" means roughly the same thing as "unimpressed." It also embeds certain cultural assumptions and values: one of the example phrases in the Python code used to run this tool is "Rainy day but still in a good mood," where "good" is +3 and "rainy" is -1, for a sum of 2 for this sentence. The speaker might actually enjoy the rain, but this tool cannot account for that. These criticisms do not mean that the tool is useless, but that it is most effective when dealing with a large number of relatively straightforward texts. Like all tools in the DSL, it can be powerful (giving a rough estimate of the sentiment of thousands of texts within a minute is beyond human ability) but you need to understand how it works (and where and when it does not work).


  4. Refresh the page. It may take minutes to process. Let's take a look at the results:

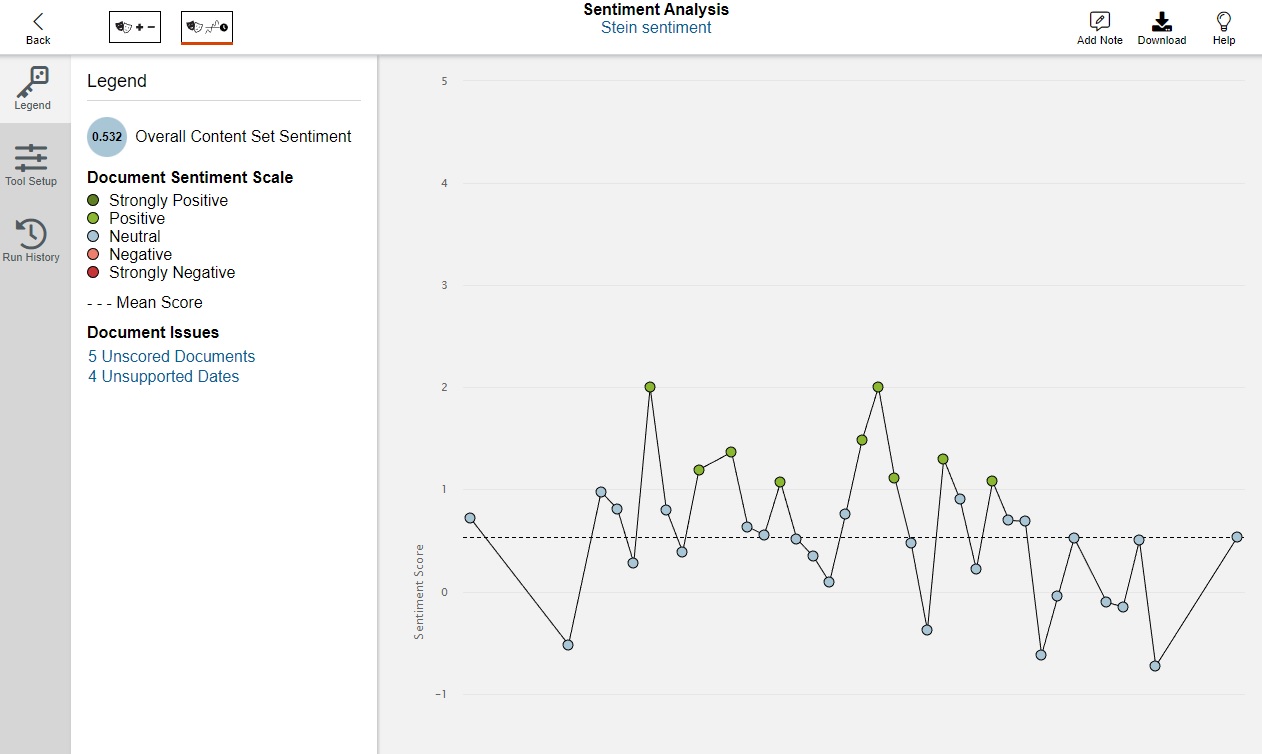

    Resulting line graph, displaying sentiment across time
    The x-axis represents years, and the y-axis represents the average sentiment score of all texts for a given year. This means that each point is an average of all words in all of the texts for a given year.

  5. You can get more information about specific years by clicking on the associated point. Find the point for 1920 and click on it.
    The point for 1920, with 3 documents and a neutral sentiment of 0.636

  6. A popup will list all documents associated with a specific year. Some years have many associated documents, whereas others have only one. You can click on document titles to go to the page for that document. Once you are done, click X.
    The documents for 1920, one positive and two neutral

  7. Some years have extreme scores, either very high or very low. Click on the point for 2011, which is the rightmost point.
    The point for 2011

  8. There is only a single document for 2011. In general, since DSL averages the scores of all texts for each year, the most extreme points (the highest and the lowest) often have only one text. Let's investigate further. Click on the document title, "Turkey." DSL will open the doc explorer view. This text actually has almost nothing to do with Stein - it mentions him once in passing - and instead is a rather negative review of an unrelated book. Return to the Sentiment Analysis tool and click Close.
    The single document for 2011 with a negative sentiment score

  9. We can have more useful results by removing documents like these. Let's create a new collection that is a subset of this one. On the top toolbar, click My Content Sets.
    Click on My Content Set

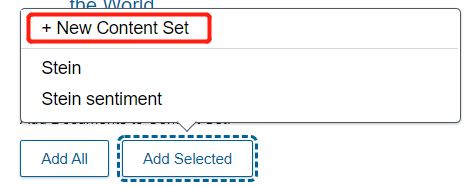

  10. Click on New Content Set.
    Content Sets page with New Content Set button highlighted

  11. Name it Stein sentiment.
    Popup for naming content set

  12. You should now see it in your list of content sets. Do not click it yet, though.
    List of all three content sets

  13. On the top toolbar, click Build. Then, on the Build screen, near Search, click View all limiters in Advanced Search.
    Advanced search

  14. Keep all three rows set to the Keyword field. Change the operators to OR. For each of the three fields, type Aurel Stein (as with the first content set) and pick one of the three versions of his name for each row.

    Changing operators and keywords
    Keywords are three variants on Aurel Stein
    However, once you are done, do not click search. We are going to add more qualifications to remove problematic documents.

  15. Scroll down. Under More Options, and under Publication Year, pick Between. For the first dropdown menu, type "1890" and press Enter. For the second year, type "1950" and press Enter.
    Change the conditions for year

  16. Under publication language, pick English. Then, click Search.
    Change the condition for language

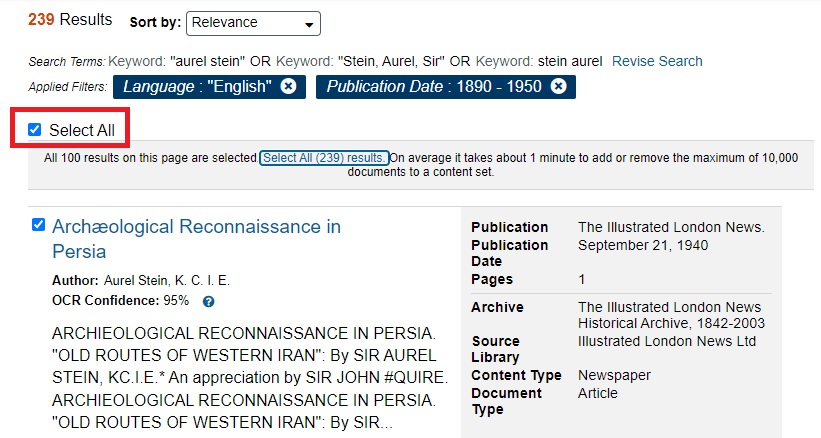

  17. On the search results screen, underneath All Content, check Select All.
    Click on Select All

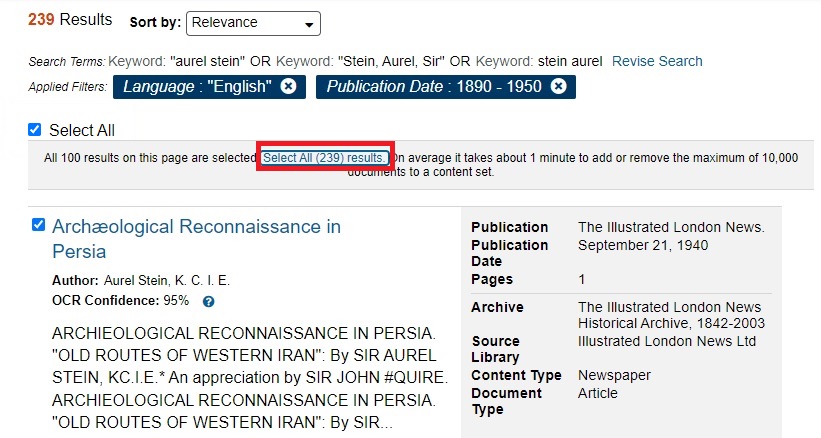

    It will then say that "All 100 results on this page are selected." Click on "Select All (235) results."
    Select all the results

  18. Now it should say, "235 results are selected." Make sure that the Active Content Set is set to "Stein sentiment".
    Make sure the Content Set is Stein sentiment

  19. Then, click the "Add to content set" button in the top and click Stein sentiment Content set.
    Add documents to Stein sentiment Content Set
    There should be a popup that says "Added 235 document(s) to Stein sentiment." Click View Content Set.
    View the content set after adding documents

  20. Since advertisements often include very positive language for marketing reasons, and since several of the advertisements in this collection only mention Stein briefly, we will improve our sentiment analysis by removing them.
    Once you are in the Stein sentiment content set, click Documents.
    Click on Documents button
    On the right menu, under Document Type, click on Advertisement.
    Document Type filter, with Advertisement checked

  21. Once you are on a screen with only the advertisements, under Documents, check Select all on page. Then, on the top right of the page, click on Remove from Content Set.
    Select all the Advertisement documents and Remove
    There will be a popup that notifies you that these documents have been removed from Stein sentiment. Click Close.
    Close the pop up window

  22. You've trimmed your content set down to something more focused. On the top toolbar, click on Analyze.
    Click on Analyze button in the Tool Bar
    Change the content set to Stein sentiment if you are not there already. Then, click Add Tool.

    Remember that since this is a new content set, you have to add tools again, but we'll only add Sentiment Analysis for this content set. We'll return to the previous content set for the next tool.
    Click on Add Tool
    And add just the Sentiment Analysis tool, then click Done.
    Add the sentiment analysis tool


  23. Under Sentiment Analysis, click View.
    Click Edit to change the tool setup

  24. First, name this tool setup "Stein sentiment 1890-1950 no ads". Second, set the cleaning configuration to Stein. Third, click Run.
    Tool setup
    Wait, refresh, and the result will be shown in a minute.



  25. On average, there are more now documents per year. After removing ads and texts from considerably after Stein's life, the remaining texts are more representative. Explore by clicking on the various points.
    Sentiment Analysis line graph, with one point per year
    One year in particular stands out for having a large number of texts with a largely negative sentiment. Click on the point for the year 1931.
    1931 has a negative score (-0.380)
    Stein had three well-regarded expeditions to western China and Central Asia. In 1931, though, his fourth expedition was halted soon after it began when he was expelled from China. Here you can see a large number of newspaper articles reporting on this event. Click on X once you are done.
    Documents for year 1931, which are almost all negative
    That's it for Sentiment Analysis! You learned how to use it, interpret the results, and how to use an advanced search to create a subset of your collection to improve the tool's results.

Topic Modeling

(back to table of contents)

  1. The final tool in the Digital Scholar Lab is Topic Modeling. Before we use this tool, we need to modify our Cleaning Configuration, because Topic Modeling is case sensitive. This means that it will consider capitalized words to be different from uncapitalized ones. At the top toolbar, click on Clean.
    Clicking on Clean in the top toolbar
  2. Click on Stein under Your Configurations.
    Selecting the Stein configuration

    Note: my screen displays many more Cleaning Configurations than yours will. This is for testing purposes, but you only need to have the Stein configuration.
  3. Under Text Correction, check the box for All lower case. Then, click on Save As on the upper toolbar.
    Checking All lower case
    Name the new cleaning configuration "Stein lower case", then click Submit.

    Saving the new configuration
  4. Now, let's use this new cleaning configuration in the Topic Modeling tool. Click on Analyze (top toolbar) to get back to the analysis menu, and change the Content Set back to Stein (if it isn't already).
    Selecting the Stein collection
  5. Then, under Topic Modeling, next to Run Details, click Edit.
    Editing the basic setup for Topic Modeling
  6. Name this tool "Stein Topics", set the Cleaning Configuration to "Stein lower case," and increase the Number of Topics to 20. Leave Words per Topic and Iterations at their defaults. Click run.
    Tool setup for Topic Modeling
  7. Once a couple minutes have passed, refresh the page.
    Note: The Topic Modeling tool uses a free program called MALLET, which stands for Machine Learning for Language Toolkit. MALLET uses an algorithm called Latent Dirichlet Allocation, or LDA for short. Basically, it looks for words that occur together often in the corpus, and then brings them together as a “topic.” This tool uses a certain degree of randomness, which is offset by running the tool many times in the background - this is what the Number of Iterations refers to. If you would like to install MALLET on your own computer, use this MALLET installation guide and tutorial.
  8. If your tool defaults to the "Topic Proportion" screen, click on the "Topics" icon in the top left. We'll come back to topic proportions after working more closely with our individual topics first.
    Topic Proportion screen with Topics icon highlighted
  9. On the "Topics" page, you will have twenty topics, numbered from 0 to 19. Each lists the words that appear together most frequently. The topics will also display as a horizontal bar chart, with one of several Topic Metrics displayed. The default is Average Word Length.
    Topic view, displaying topics, their words, and average word length
    Click on the Topic Metric dropdown menu, then on each of the metrics in turn, considering how the other options affect your results. Each of these metrics may help identify topics to avoid or focus on.
    Topic metric dropdown menu
    Average Word Length measures word length, with longer words suggesting more specific (and therefore meaningful) topics.
    Coherence measures the likelihood that words within a topic appear next to each other.
    Corpus Distance measures the distance from words in a topic from the corpus as a whole, suggesting which topics are most distinct from the rest of the corpus.
    Document Count displays how many documents appear in each topic. Topics with just one or two documents might be outliers, but topics that appear in the entire collection might be too vague.
    Document Entropy measures the probability that each topic appears in a randomly selected text.
    Exclusivity measures how often the top words in a topic co-occur with top words in other topics.
    Tokens measures how often words from specific topics appear in the entire corpus.
    Uniform Distance suggests which topics are the most specific.
    When you're done, select Average Word Length again.
  10. If you scroll through the list of topics, most topics should look like they refer to similar topics or themes. There’s a bit of randomization in this tool, so your topics and their numbering will vary from those in these examples, but the large number of iterations ensures that most of the time, the tool produces topics that are fairly similar to each other. Here, my topic 18's words are river, road, route, pass, valley, small, stage, bank, stream, and path. They appear to have a strong focus on geography and travel. Pick any topic and click on it. Note: for the purposes of this example, I will demonstrate using my Topic 18, but you can pick any topic.
    Clicking on Topic 18
    This will display the Inspect pane, where you can rename the topic, consult its summary statistics (Average Word Length, Coherence, etc.), consult statistics for each of the top terms (e.g. how common is "river"? how many documents does it appear in, in the context of being part of this topic?), and switch to displaying Phrases and Documents. Click on Documents.
    The Inspect pane
    You will then have a list of all documents in which this topic appears, which is helpful for determining the genres and content of this topic. As you might have suspected, my topic 18 has a number of documents related to both Stein's travels and those of others (e.g. Alexander the Great), along with texts like "Ancient Ways in Iran" and "Routes in Sinkiang" (i.e. modern Xinjiang Province in western China). If any of these documents interest you, you can click on them to view them, making the topic modeling tool another method for discovering primary sources.
  11. Now that we have confirmed this topic's strong focus on geographic texts, let's name it Geography. Click on the topic's title and rename it "Geography", then click X to close the pane.
    Renaming the topic, closing the pane
  12. Go through the list and give titles to each of the topics. You should be able to guess at the general theme of most topics, especially if you consider which documents appear in each topic.
    Another example is my topic 12, which includes words like "Soviet," "bureau," "agent," and "intelligence." These suggest the British government's involvement in the Great Game, particularly intelligence gathering, so I named this topic "Intelligence Gathering." I drew on my own domain expertise to identify this; when using topic modeling for your own research, you will likely also make connections that someone unfamiliar with your topic might not notice.
    Note: it is very likely that one or two of your topics resembles my topic 6, with non-English words like "gyappa" and "nangwa" included alongside the word Tibetan. If you click on "Identified in: 2 Documents," you will likely see two English-language textbooks for learning Tibetan. These topics thus include a number of Tibetan words, grammatical terms, and words like "tea" that are occur frequently in the example sentences in these books. Feel free to name this topic Tibetan.
    If there are any topics which are unclear, feel free to leave them untitled, label them "unclear" or "junk", or to add a question mark at the end of the topic name - anything that lets you, the researcher, know that the topic is ambiguous. Sometimes topic modeling groups words together that have no meaningful connection; other times, a topic might seem vague, but further research reveals a connection.
    Note: clicking on the Download button here allows you to download the data for each of these topics. If you are in the Topic Proportion view described below, you will have access to different download options.

  13. Now that we’ve seen roughly what words and themes our topics cover, let’s look at how common these themes are in our corpus. In the top left corner, click on the Topic Proportion icon.
    Topic Proportion button

  14. The Topic Proportion page displays a horizontal proportional bar chart. Each row represents a single text in our collection, with a total for whole Content Set at the top; each bar is colour-coded to show which topics appear in that text and in what proportion.
    Topic Proportion view with bar chart, colours corresponding to the topics
    By default, the Digital Scholar Lab displays the first fifteen documents in your collection. Let's change that: scroll down and click on Selected Documents.
    Highlighting the select documents option, bottom of left sidebar
    Uncheck all of the documents, scroll down, and check "Link with Kipling," "Kashgar: Monthly Diaries (1912-1920)," "In Track of Alexander the Great," "News in Brief," and "'New' China and Sir Aurel Stein." Then click Done.
    Checking off the listed texts
    The Topic Proportion page now displays only the documents we've selected. Note that they are represented as being composed of different topics.

  15. You can hover the mouse cursor over specific coloured segments to see which topic they correspond to, and what percent of that particular document is composed of that topic. You can click on a specific topic to display just that topic, making it easy to compare one topic's prevalance across your selected documents.
    Hover over a few topics to view their name and percentage.
    Hovering over the topic Archaeology in the text News in Brief
    Then click on a topic of your choice.

    After clicking on Archaeology, now only its proportions are displayed for each text
    This option displays only the proportion of this topic across all selected texts.
    Remember that on the Topic Proportion page, the Download option gives you different results than on the main Topics page. This is useful if you want to show the proportion of a specific topic in your collection.

That's it! You've run topic modeling, begun familiarising yourself with the metrics available, named your topics, explored the documents within them, and visualised the proportions of topics within various texts. You can use topic modeling to discover themes connecting texts and to identify specific documents that you may wish to read closely.

Continue to Exporting your results
Return to the main Gale Digital Scholar Lab tutorial
